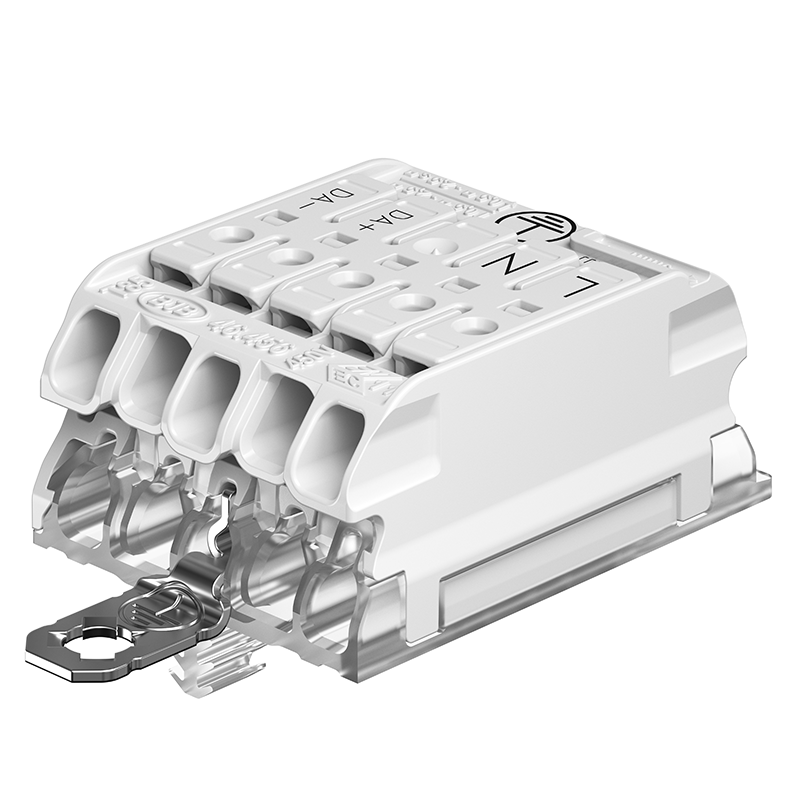

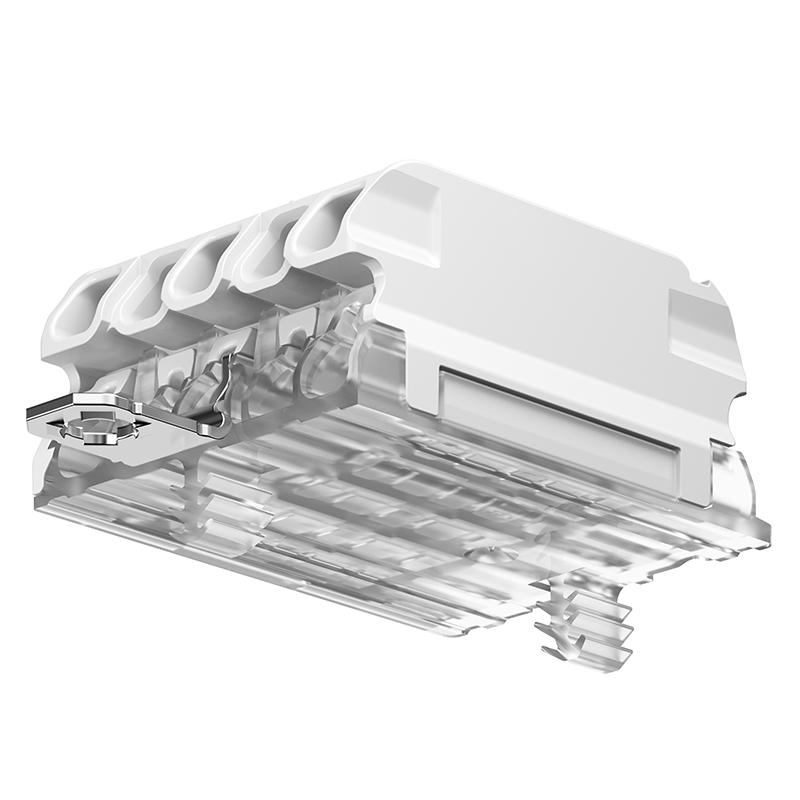

Compact Rast5 Profile Groove L-N-ES-D+-DA- EB terminal block

货号: 46.456.1012-0

EAN: 4049853

产品信息 "Compact Rast5 Profile Groove L-N-ES-D+-DA- EB terminal block"

New family of RAST5 Terminal Blocks with 16mm height, a perfect fit to all standard ECGs

Wire release function on both sides for top connection

Easy to use by push wire contacts

Stranded wires on top connection possible

Multiple earthing possibilities: earthing bracket, rapid earth contact and earthing sign

Different mechanical fixation methods: snap-in pins, pin for aluminum profiles and screw mounting

Different standard markings available, more on demand

Ausführung:	marking L N ⏚ DA+ DA- and earthing bracket
Certification Mark:	ENEC11 Certificate License No. 19415-003
Certification Status:	active
Conductor cross-section:	0.5 - 2.5 mm²
Connector:	push wire contact
Contact opening:	Upper connection: Conductor can be detached using a screwdriver, push and detachable Lower connection: conductor can be released using a release pin, turning and pulling
Earth contact :	Earth bracket

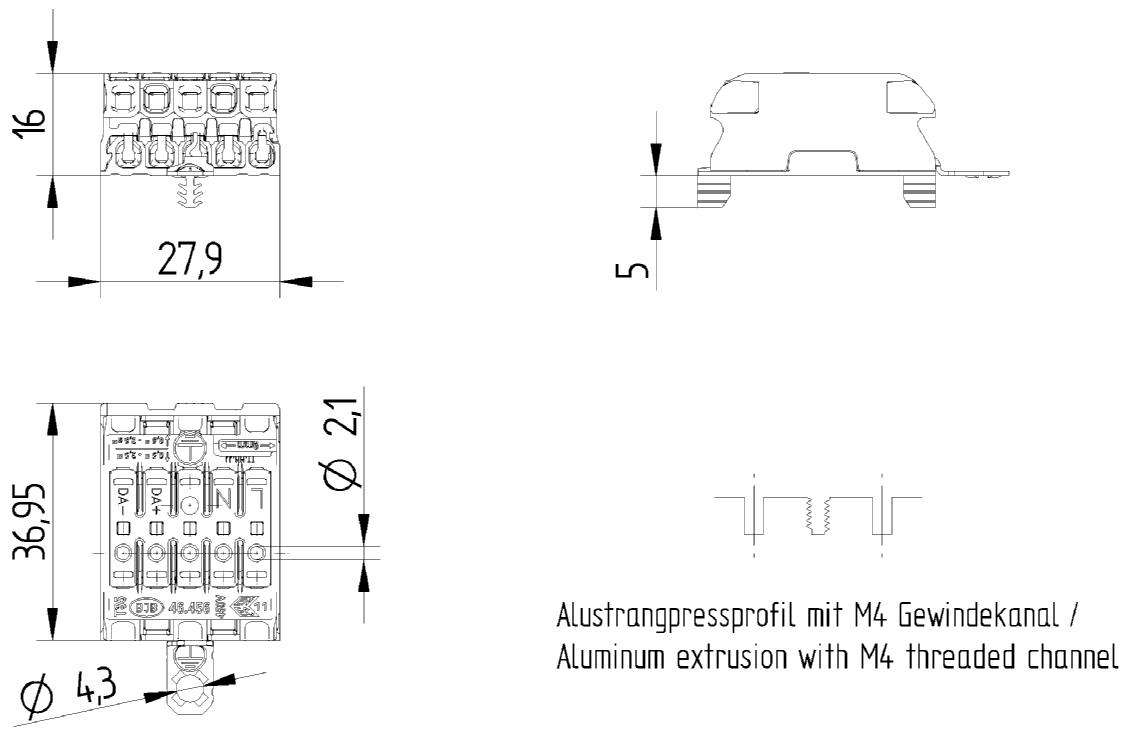

Height:	16 mm
Length:	37 mm
Lettering:	L N ⏚ DA+ DA-
Material:	Housing: PC white and clearContacts: Cu
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Number of poles:	5
Operating current:	24A
Operating temperature:	-40 °C to 85 °C (at maximum testcurrent of 24 A)
Operating voltage:	450V
Other:	Test opening Ø 2.1 ± 0.1 - Contact depth 4.2 mm
Packaging quantity:	400
Producttype:	Compact Rast 5 terminal block
Series:	Compact Rast 5 terminal blocks
T-marking:	T85 (IEC) / T105 (UL)
UL?:	yes
Width:	27,9 mm
Wire length:	Stripping length 9 - 10 mm
Wiring:	Push wire contact
mounting method 1:	Pin for profile groove
