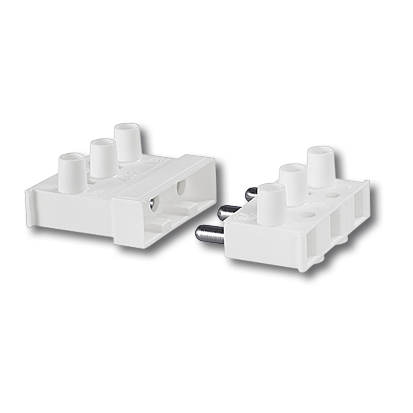

Connector 3 poles
货号:
48.271.0311-0
EAN:
4049853
-
-
ø 3,4
-
-
产品信息 "Connector 3 poles"
Nominal cross section: 1.5 mm²
| Ausführung: | Connecting terminal |
|---|---|
| Color: | natural colour |
| Lettering: | L *0* N |
| Material: | Housing: PA 6.6 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 500 |
| Plug/socket: | Plug and Socket |
| Producttype: | Connecting Terminals |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Screw terminals: | ø 3.4 |
| Series: | Connectors and fused terminal blocks |
| Weight: | 18 g |
| mounting method 1: | Screw mount |
| old article number: | 48.271.0311.51 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 48.271.0311-0 | Genehmigung_liegt_vor-Approval_at_hand1672006 | ||
| 48.271.0311-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity718278 | ||
| 48.271.0311-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 |
-
-
ø 3,4
-
-

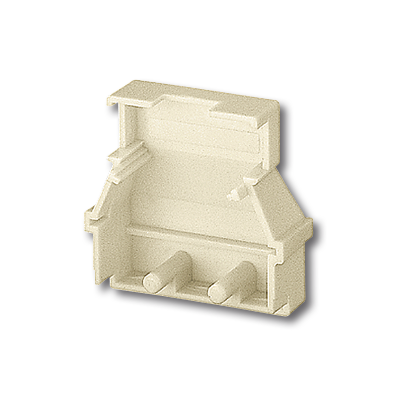

Accessories
