Counterholder Universal Inline Adapter 1.0 - 2.0mm
货号:
28.701.U302-0
EAN:
4049853
-
1,0 - 2,0 mm
产品信息 "Counterholder Universal Inline Adapter 1.0 - 2.0mm"
Thermal extension: Axial movement will be compensated
Bolt as guidance block
Release function with spring
Bolt as guidance block
Release function with spring
| Ausführung: | Suitable for use in 3 phase busbar |
|---|---|
| Color: | white |

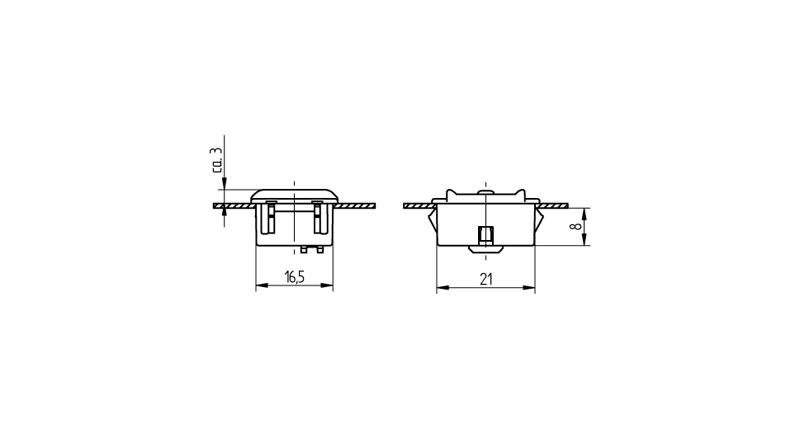

| Luminaire wall thickness: | 1.0 - 2.0 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 100 |
| Producttype: | Lampholders for linear LED Modules (LFS) |
| Series: | Lampholders for Linear LED Modules |
| UL?: | yes |
| Weight: | 8 g |
| mounting method 1: | Snap fixing |
| old article number: | 28.701.U302.51 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 28.701.U302-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 28.701.U302-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 | ||
| 28.701.U302-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity4667472 |
-
1,0 - 2,0 mm
