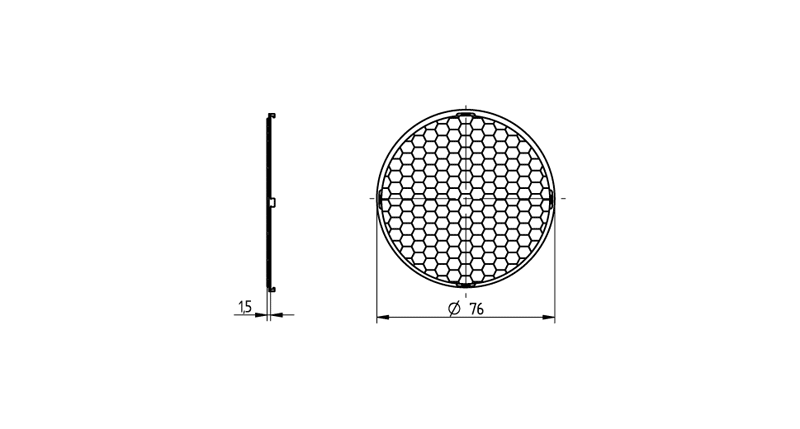

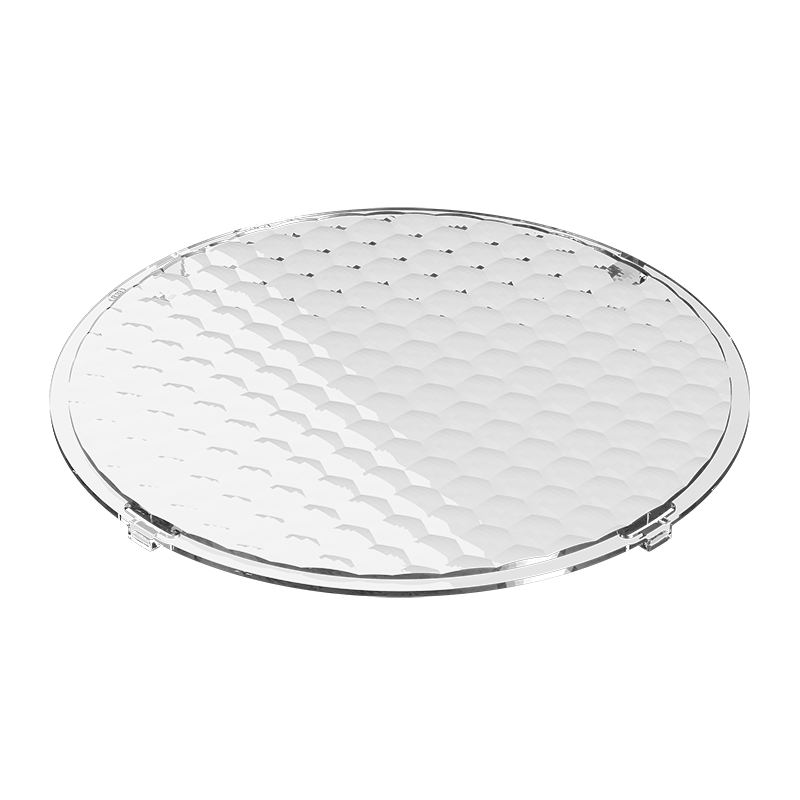

Diffusor plate L12F
货号:
47.950.E403-0
EAN:
4049853
产品信息 "Diffusor plate L12F"
The following product properties are achieved by combining a cover plate with a reflector:
• Soft transition of the color fringes
• Possibly visually disruptive openings of the connector are covered
• Dust proof
• Insect protection
• Contact protection
• Soft transition of the color fringes
• Possibly visually disruptive openings of the connector are covered
• Dust proof
• Insect protection
• Contact protection
| Material: | PC, clear |
|---|---|
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 1000 |
| Producttype: | OptiSpot Reflectors Ø 74 mm |
| Series: | Reflectors Ø 74 mm for Spotlight Connectors Ø 50 mm |
| Weight: | 3 g |
| mounting method 1: | Snap in fixing onto top side of the reflector by means ofsnap in hooks |
| old article number: | 47.950.-403.85 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|

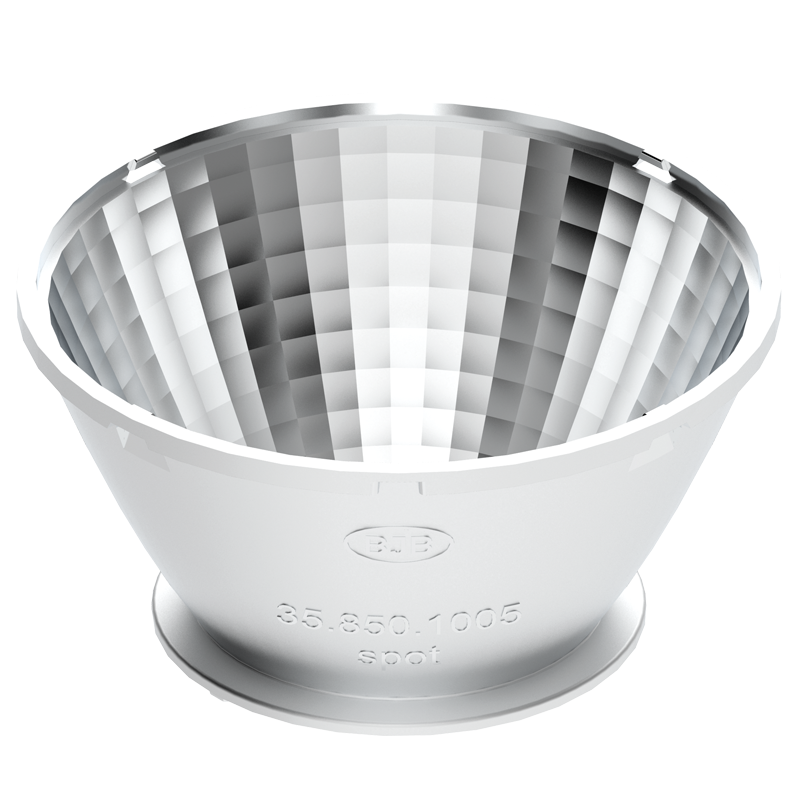

Accessories
