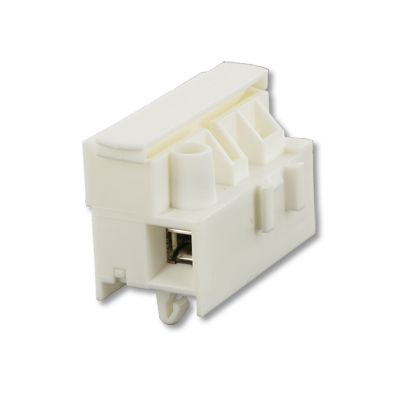

Fused terminal block 1 pole
货号:
49.112.1002-0
EAN:
4049853
-
-
-

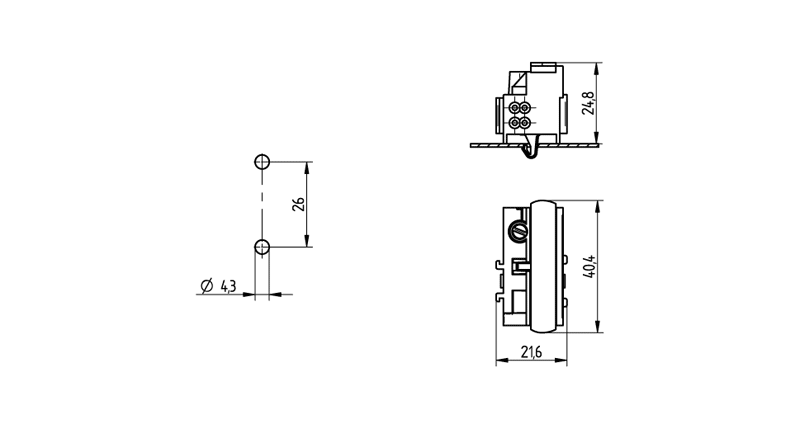

ø 3,4
-
-
-
0,8 - 1,0
产品信息 "Fused terminal block 1 pole"
Screw / pushwire terminals
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
| Ausführung: | Fused Terminal Block |
|---|---|
| Color: | white |
| Lettering: | L |
| Luminaire wall thickness: | 0.8 - 1.0 |
| Material: | Housing: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 1 |
| Packaging quantity: | 1000 |
| Producttype: | Fused Terminal Blocks |
| Screw terminals: | ø 3.4 |
| Series: | Connectors and fused terminal blocks |
| Weight: | 10 g |
| mounting method 1: | Snap fixing |
| old article number: | 49.112.1002.51 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 49.112.1002-0 | Genehmigung_liegt_vor-Approval_at_hand6294080 | ||
| 49.112.1002-0 | Genehmigung_liegt_vor-Approval_at_hand719108 | ||
| 49.112.1002-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 |
-
-
-
ø 3,4
-
-
-
0,8 - 1,0
