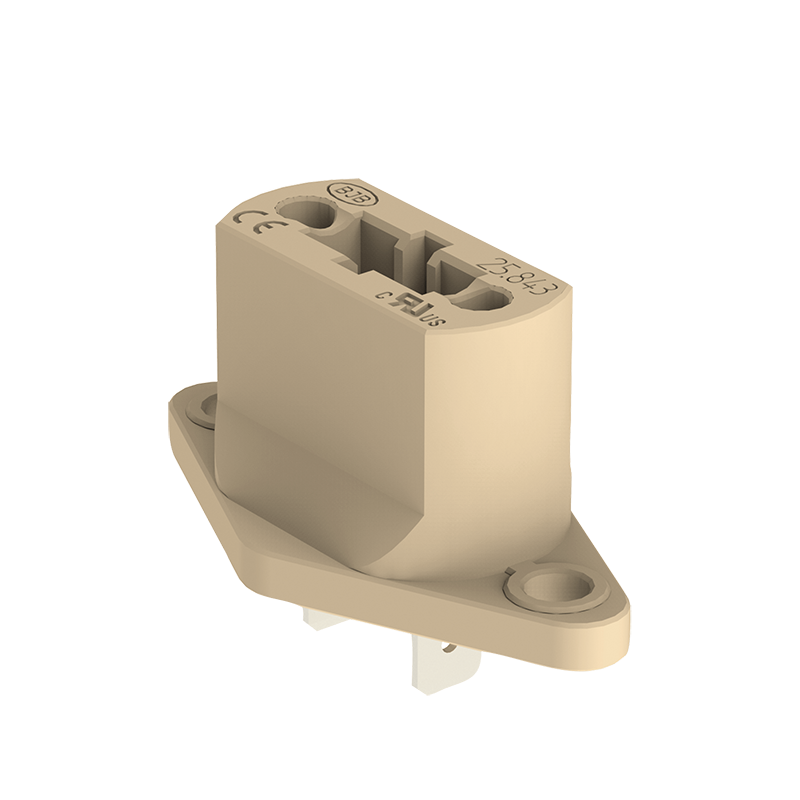

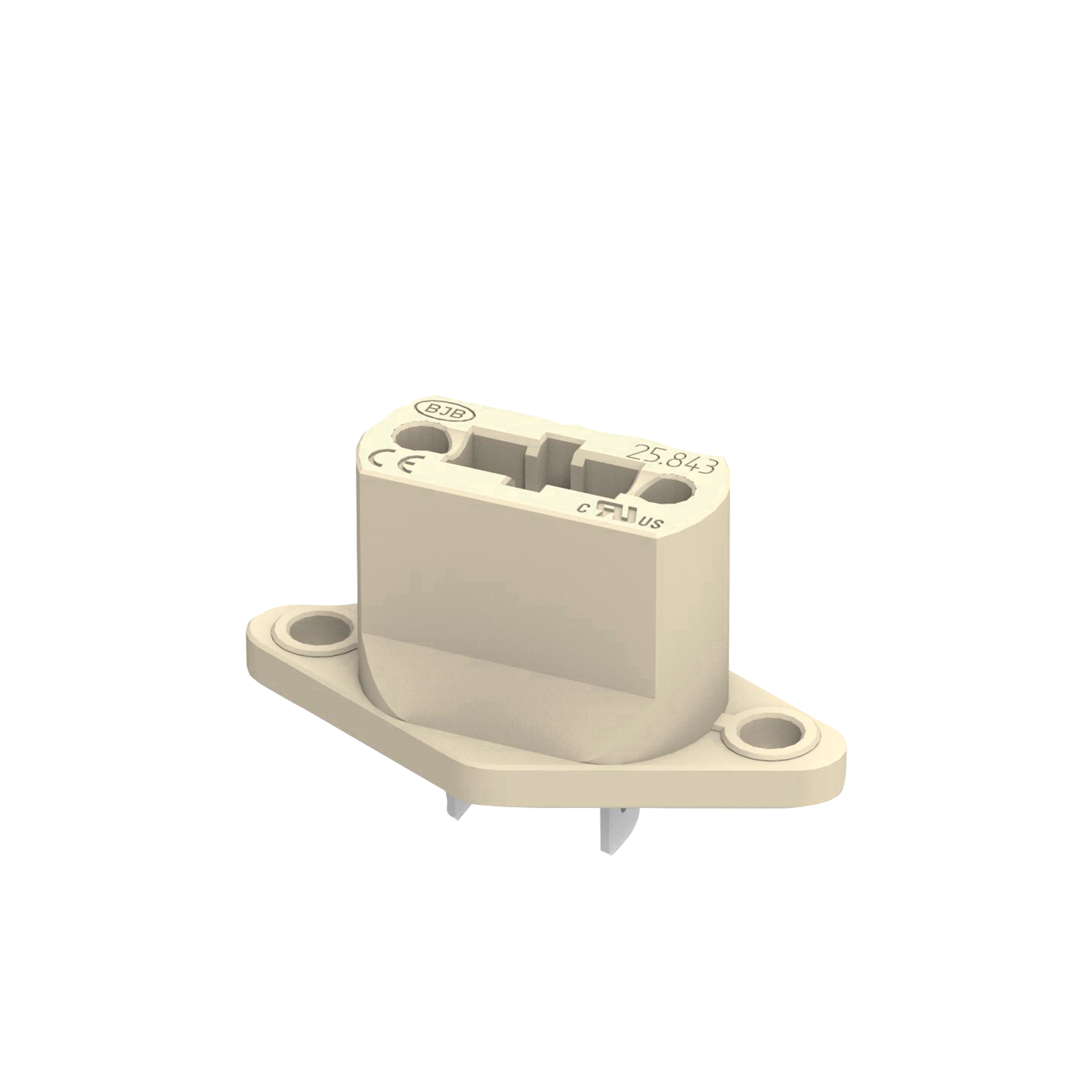

G9 lamp holder for microwaves
货号:
25.843.1000-0
EAN:
4049853
-
6,3 x 0,8
-
-
G9, 25W, 230V
-
产品信息 "G9 lamp holder for microwaves"
Lamp holder G9 for microwaves.
- Easy exchange of lamp
- The selection of our products, as well as the technically correct installation according to the corresponding regulations (e.g. IEC 60598,/ VDE 0711, IEC 60335/VDE 0700) , are the responsibility of the user.
| Application areas: | Home |
|---|---|
| Connector: | Tab terminal 6.3 x 0.8 mm |
| Lamp: | G9 - suitable for G9 halogen lamps |
| Material: | Housing: CeramicContacts: CrNi |
| Maximum power consumption: | 1.4 - 4.2 W |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 2 A |
| Operating mode: | Constant current |
| Operating voltage: | 250 V |
| Other: | Can be used as a ceiling or side light. Easy exchange of the lamp. Inserted lamp only for use in oven application. |
| Packaging quantity: | 224 |
| Producttype: | G9 Luminaire for combined ovens and microwaves |
| Series: | Combined Ovens/Microwaves |
| Storage temperature: | -30 ° C to +45° C |
| Suitable for: | Combined ovens - Microwaves |
| UL?: | yes |
| approbation: | ENEC, cURus |
| mounting method: | Screw fixing |
| old article number: | 25.843.1000.00 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 25.843.1000-0 | ENEC_Zeichen-ENEC_Approval1914405 | ||
| 25.843.1000-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)703640 |
-
6,3 x 0,8
-
-
G9, 25W, 230V
-
