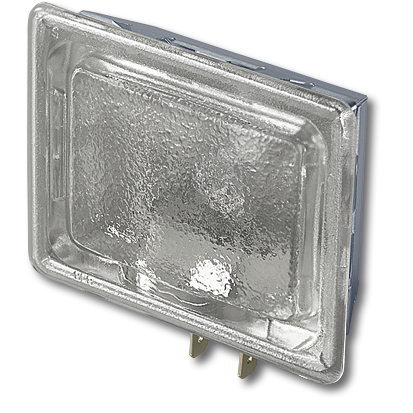

G9 Oven lamp Pyro Square 55x70 120V
货号:
77.708.7106-0
EAN:
4049853
-
-
6,3 x 0,8
-
1,0 - 2,0 mm
-
-
G9, 25W, 120V
-
产品信息 "G9 Oven lamp Pyro Square 55x70 120V"
Also with cables available
Lamps for other voltages on request
Lamps for other voltages on request
| Application areas: | Home + Professional |
|---|---|
| Connector: | Tab terminals vertical |
| Lamp: | G9, 25W |
| Material: | Lens: borosilicate glass 550° CReflector: Steel aluminisedLampholder: Steatite |

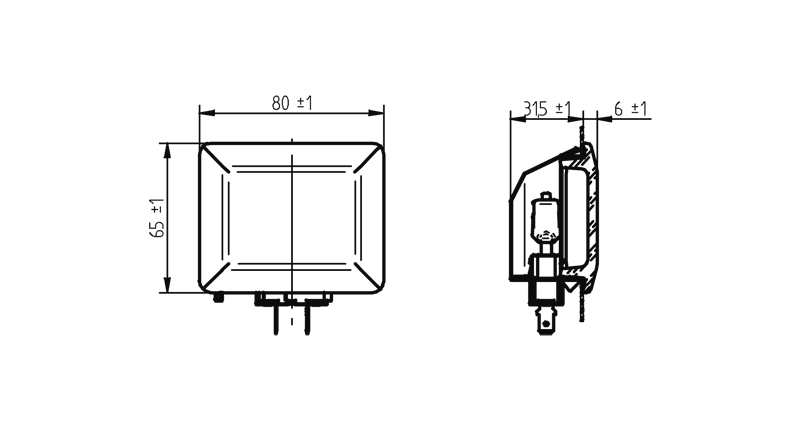

| Mounting cutout: | 55 x 70 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating voltage: | 120V |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 100 |
| Producttype: | G9 Pyro Oven Luminaire |
| Series: | Pyro |
| Suitable for: | Pyrolytic oven |
| UL?: | yes |
| Weight: | 122 g |
| cURus file no.: | E-93328 |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.708.7106.23 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 77.708.7106-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)703640 |
-
-
6,3 x 0,8
-
1,0 - 2,0 mm
-
-
G9, 25W, 120V
-
