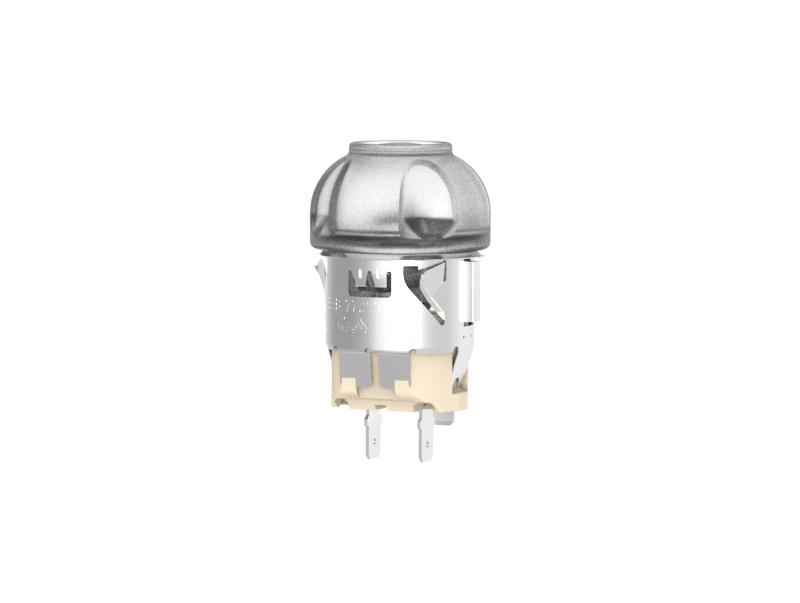

G9 Oven lamp Round ø 35,5
货号:
77.228.1418-0
EAN:
4049853
产品信息 "G9 Oven lamp Round ø 35,5"
G9 Oven lamp Round ø 35,5
| Application areas: | Home |
|---|---|
| Connector: | Tab terminals vertical |
| Lamp: | G9, 25W |
| Lens diameter: | 42 |
| Light Distribution: | Symmetrical |
| Mounting cutout: | 35.5 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under www.bjb.com/en/guarantee-conditions are valid. |
| Operating mode: | Constant current |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 144 |
| Producttype: | G9 Standard Oven Luminaire |
| Series: | Standard |
| Suitable for: | Standard oven |
| UL?: | yes |
| mounting method: | Snap-in mounting |
| old article number: | 77.228.1418.10 |
可用下载
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 77.228.1418-0 | ENEC_Zeichen-ENEC_Approval741008 | ||
| 77.228.1418-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)703640 |
