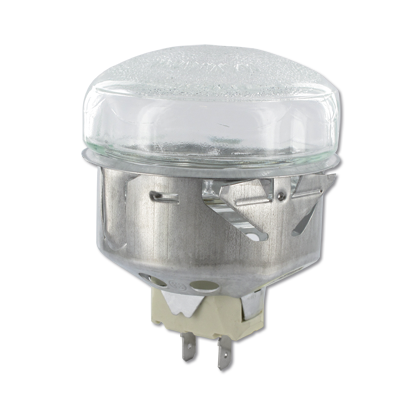

G9 Oven lamp Round ø 67
货号:
77.953.3101-0
EAN:
4049853
-
6,3 x 0,8
-
0,7 - 1,3 mm
-
-
G9, 25W, 230V
-
产品信息 "G9 Oven lamp Round ø 67"
Lamps for other voltages on request
| Application areas: | Home |
|---|---|
| Connector: | Tab terminals vertical |
| Lamp: | G9, 25W |
| Lens diameter: | 68 mm |
| Material: | Lens: soda-lime glass 350° C, snap in fixingFixing ring: CrNi / nickel plated steelLampholder: Steatite |

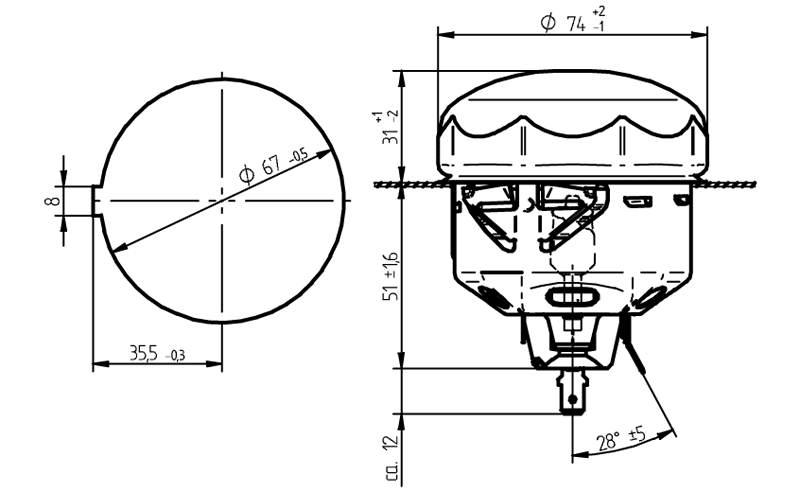

| Mounting cutout: | 67 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 12 |
| Producttype: | G9 Standard Oven Luminaire |
| Series: | Standard |
| Suitable for: | Standard oven |
| Weight: | 170 g |
| approbation: | cURus |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.953.3101.72 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 77.953.3101-0 | Genehmigung_liegt_vor-Approval_at_hand4805180 | ||
| 77.953.3101-0 | ENEC_Zeichen-ENEC_Approval741008 |
-
6,3 x 0,8
-
0,7 - 1,3 mm
-
-
G9, 25W, 230V
-
