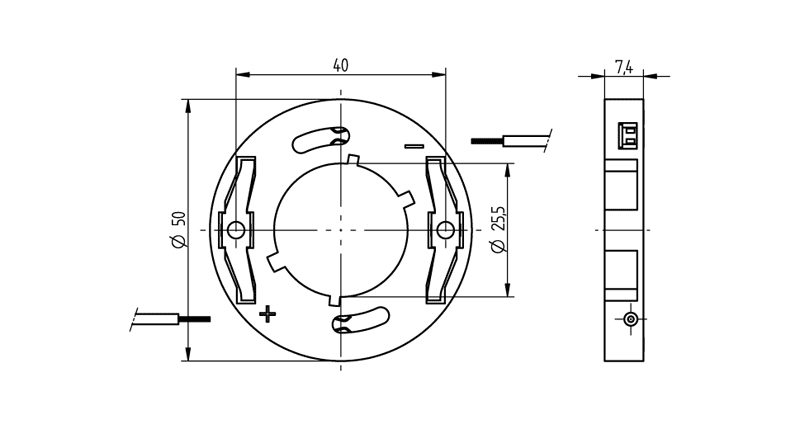

Lampholder GH36d-3 for Twist 'n' Spot/Downlight LED Module
货号:
28.720.1002-0
EAN:
4049853
-
-
2 connection points
-
0,5 mm²
-
8.0 + 1 mm
产品信息 "Lampholder GH36d-3 for Twist 'n' Spot/Downlight LED Module"
Twist and Lock System
Strip length: 8+1 mm
Optimised heat management: CrNi leaf springs provide permanent contact pressure between LED module and heat sink
Screw fixing via standard M3 screws
Max. torque for screw fixing 0.3 Nm
VDE-REG.-No. E659
Strip length: 8+1 mm
Optimised heat management: CrNi leaf springs provide permanent contact pressure between LED module and heat sink
Screw fixing via standard M3 screws
Max. torque for screw fixing 0.3 Nm
VDE-REG.-No. E659
| Color: | black |
|---|---|
| Key: | GH36d-3 |
| Material: | Housing: PPSMaterial contacts: CuSnLeaf Spring: CrNi |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 240 |
| Producttype: | Lampholders and bases for GH36d LED Light Engines |
| Rated output current: | 2 A |
| Rated voltage: | 150 V |
| Screws: | M3 |
| Series: | Lampholders and bases for GH36d LED Light Engines |
| Temperature: | max. 140°C |
| Thread: | max. torque 0,3 Nm |
| Weight: | 9,4 g |
| mounting method 1: | Screw mount |
| old article number: | 28.720.1002.90 |
可用下载
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 28.720.1002-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity4710759 | ||
| 28.720.1002-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 |
-
-
2 connection points
-
0,5 mm²
-
8.0 + 1 mm
