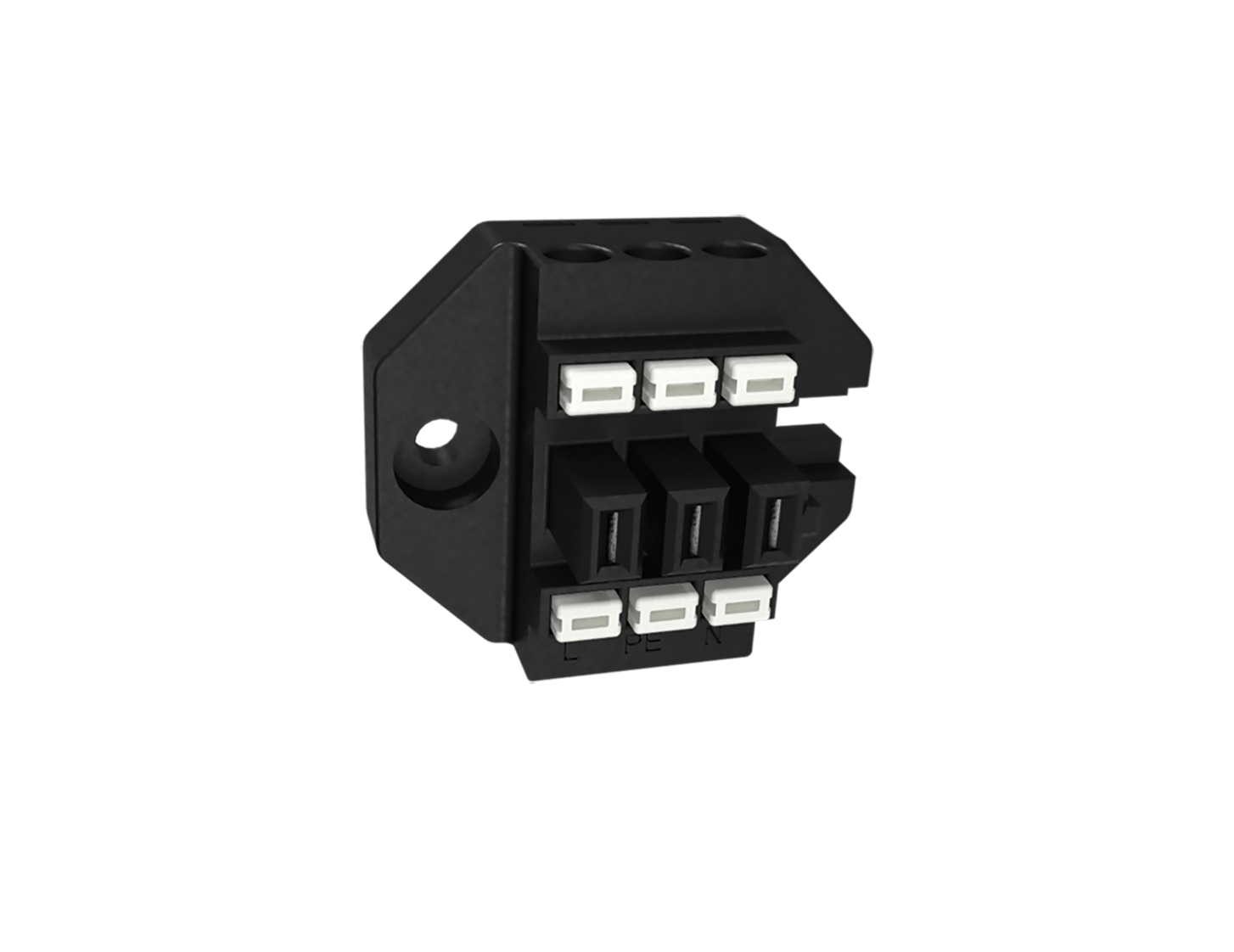

MainsVoltDisconnect P&R Socket - 3 pole
货号:
47.131.1001-0
EAN:
4049853
-
0.5 - 4.0 mm2
-
ø 0.5 - 1.5 mm²
-
Ø 0.8 - 2.25 mm
-
-
-
0.5 - 4.0 mm2
产品信息 "MainsVoltDisconnect P&R Socket - 3 pole"
• Push-wire contact including release button
• Reverse polarity protection
• Up to 5 mating / unmating cycles hot plugging
• Tracking resistance: Level 3

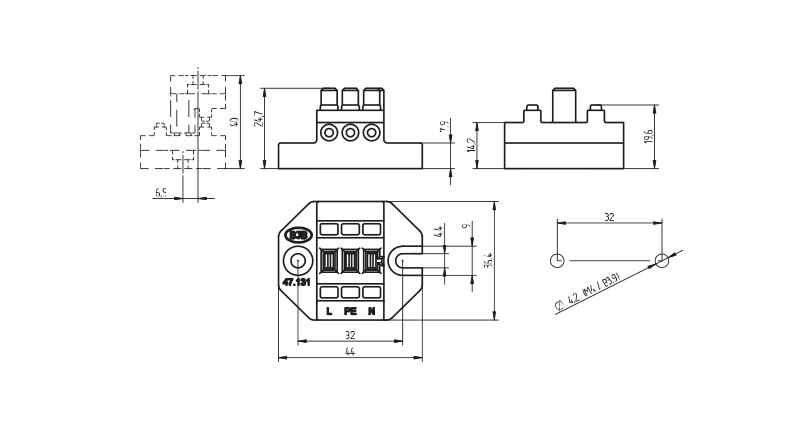

• Total height: socket and plug: 40.5 mm
• Safe to touch thanks to deep-lying contacts
• Rated Voltage: 250 V AC / 300 V DC
• Rated Current: 6 A per contact
Mains voltage disconnect terminal blocks are designed to automatically disconnect the internal wiring from the main supply inside the street lighting fixture. This will help the technicians to safely do cleaning/maintenance of the luminaire.
| Insulation: | max. Ø 5 mm |
|---|---|
| Material: | Housing: PBT, flammability rating : UL-94-V0Contacts: Cu |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 6 A per contact |
| Operating temperature: | -40 °C up to 125 °C |
| Operating voltage: | 250 V AC / 300 V DC |
| Other: | Rated impulse voltage: tbc |
| Packaging quantity: | 280 |
| Producttype: | Mains Voltage Disconnector |
| Series: | Mains Voltage Disconnector |
| Weight: | 18,8 g |
| Wires: | Wire ends: Solid wire ends: 0.5 - 4.0 mm2Stranded wire ends 0.5 - 1.5 mm2with ferrule(Ferrule Ø 0.8 - 2.25 mm) |
| old article number: | 47.131.1001.80 |
