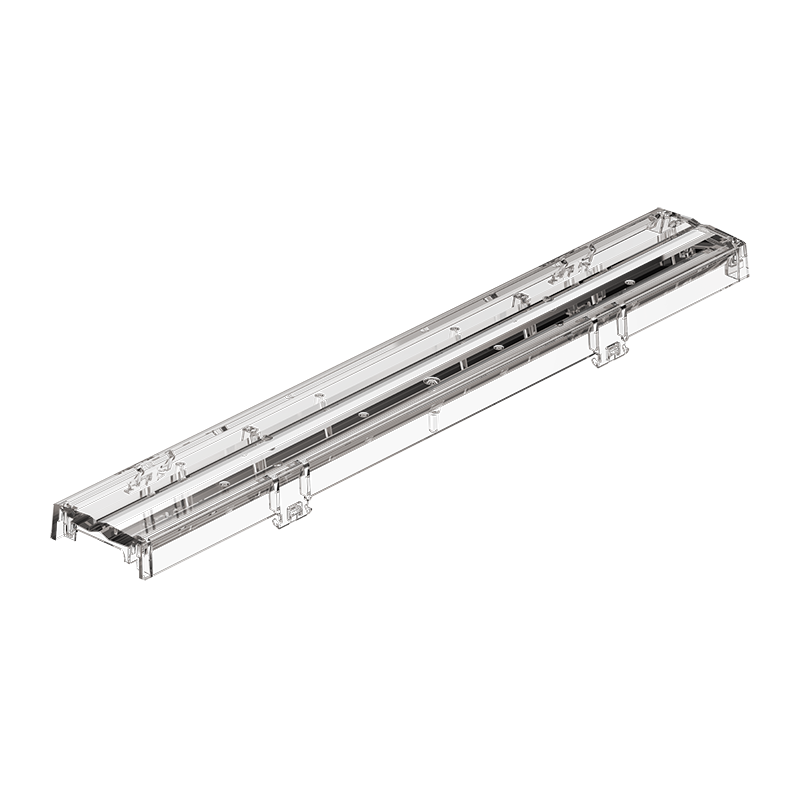

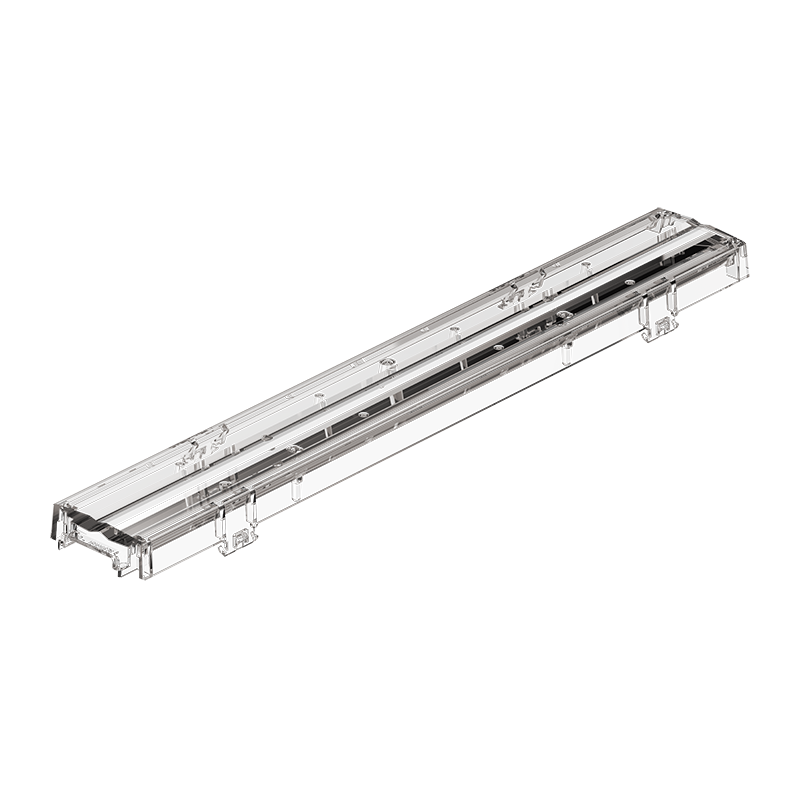

OptiLine Flex - DA 1 ft
-
-
Double asymmetrical
-
0,5 - 1,0 mm
1-Click push-in fixing into luminaire metall sheet and aluminium profiles for metall sheets: 0.5 - 1.0 mm
• Centering pins for mounting and optimal alignment of optics and LED module
• Centering pins also as anti rotation protection
• Spacers for correct positioning and alignment of LED module to the lens
• Key and slot system for a gapless assembly of the optics
• Only one end cap for both ends
Suitable for different lengths of LED modules from 280 mm (1ft) to 560 mm (2ft). Compatible with freely available LED modules with width of 20 - 24 mm and module thickness of 1.6 mm
• Improved visibility and contrast of the illuminated areas
• Good and uniform light distribution
• Reduced glare
| Application areas: | For use in linear- and panel lightsOffice: Work place lighting and corridor lightingShop: General lighting and corridor lightingIndustry: Park stores, department stores and warehousesPublic Areas: Corridors and stairways |
|---|---|
| Color: | clear, clear satined |
| Height: | 11.9 mm |
| Length: | 283.2 mm |

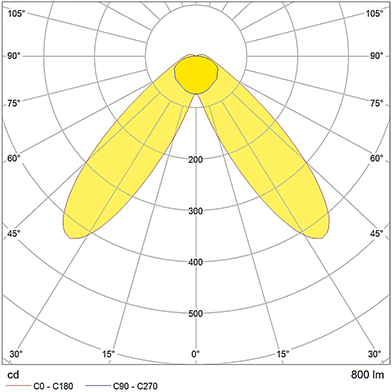

| Light Distribution: | Double asymmetric |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110 °C |
| Optical efficiency: | 91% (Philips Fortimo LED Strip OC) |
| Packaging quantity: | 84 |
| Producttype: | OptiLine Flex - single-row 1-click Optics - Pitch-independent |
| Series: | OptiLine Flex - single-row 1-click Optics - Pitch-independent |
| Suitable for: | LEDs 2835, 3014, 3030, 5630 |
| Utilityfilm Link: | https://youtu.be/1DNfsMp1Op4 |
| Weight: | 55 g |
| Width: | 40 mm |
| mounting method 1: | Push-in fixing into metal sheet or aluminium profile |
| old article number: | 35.301.1031.85 |
