OptiLine Louvre Black & White 2 ft optics grid
货号:
35.312.2001-0
EAN:
4049853000221
产品信息 "OptiLine Louvre Black & White 2 ft optics grid"
Louvre 2ft
For use with 1R louvre optics

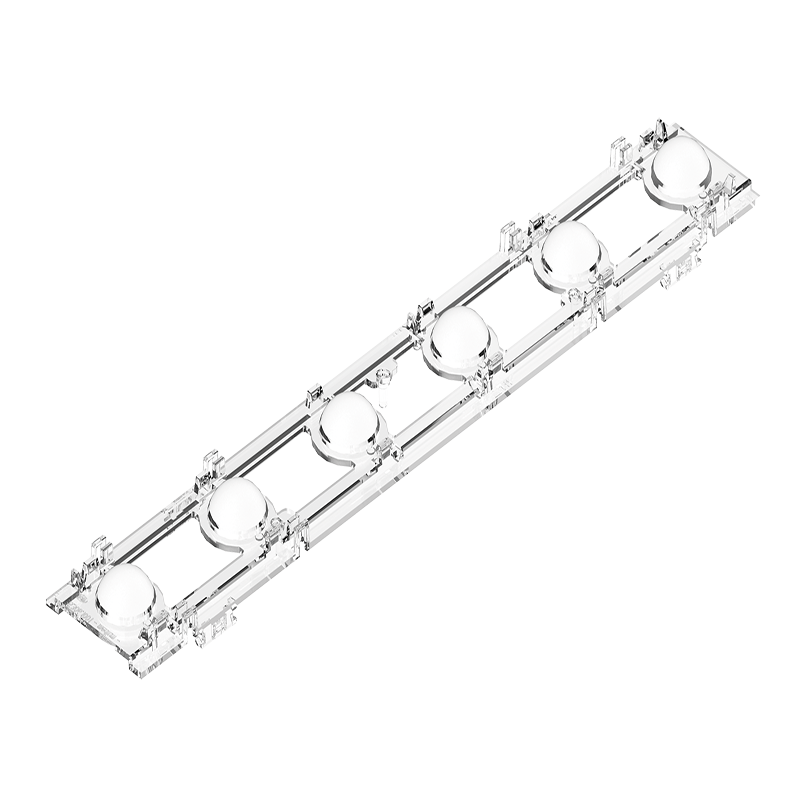

35.106.1001 Medium

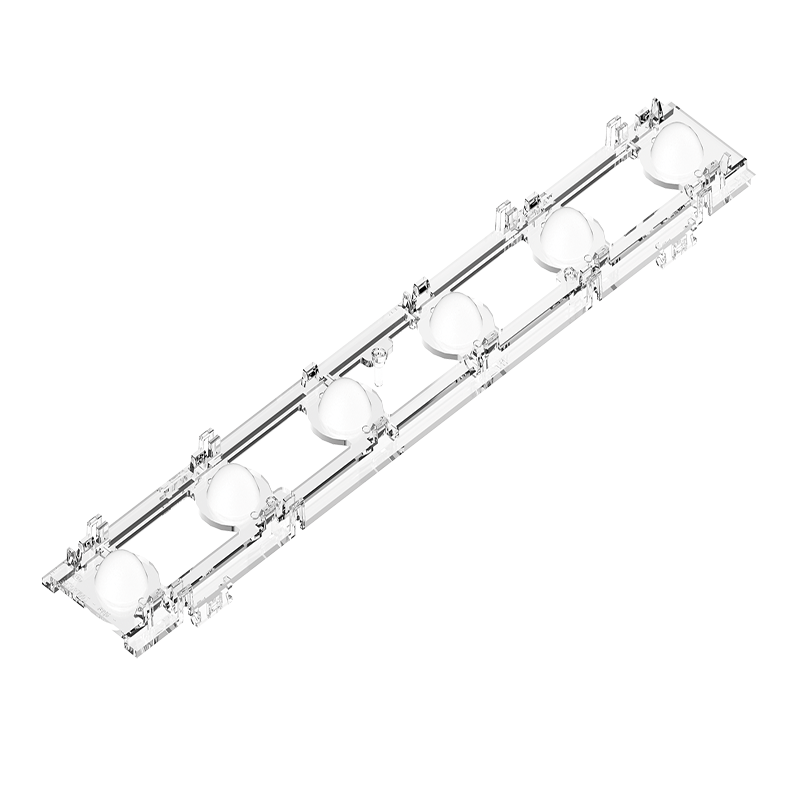

35.106.1002 Wide
35.106.1003 Extra wide
35.106.1004 Single asymmetric

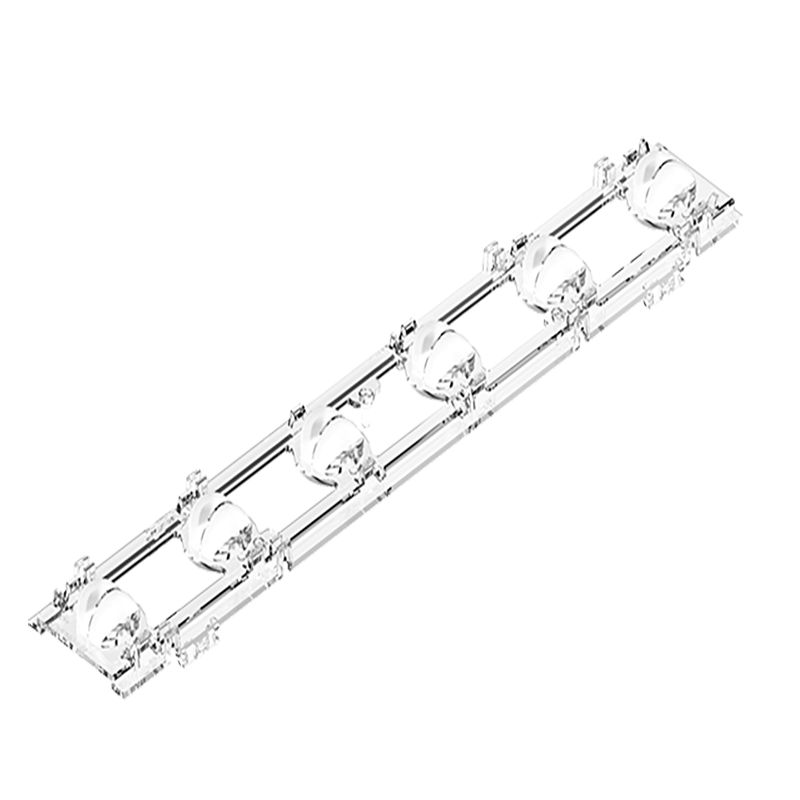

35.106.1005 Double asymmetric
Optics and louvre are only available separately
Technical details
• Centering and positioning pins for aligning the louvre
• Snap-in hooks for fixing louvre into the optics
• Overlap at the louvre end - compensates thermal expansion - avoidance of stray light
• Seamless integration into the luminaire housing

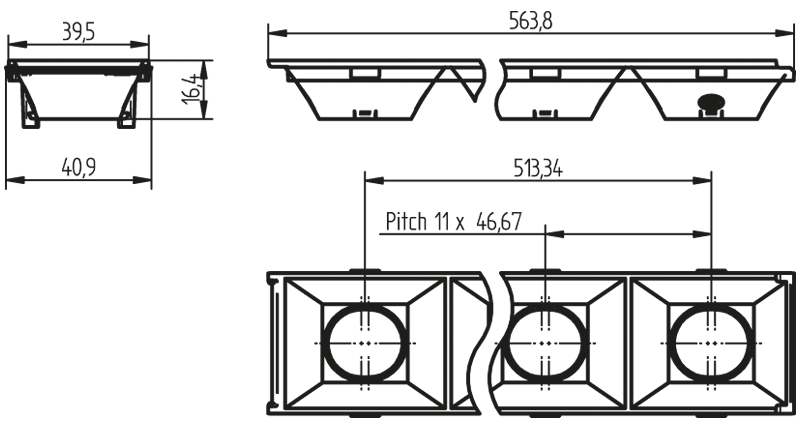

| Color: | white |
|---|---|
| Height: | 16.4 mm |
| Length: | 563.8 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110 °C |
| Packaging quantity: | 72 |
| Pitch distance: | 46.67 mm |
| Producttype: | OptiLine Louvre - single-row 1-Click optics |
| Series: | OptiLine Louvre Standard Systems |
| Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
| Width: | 40.9 mm |
| mounting method 1: | Snap into the optics |
| old article number: | 35.312.2001.50 |
