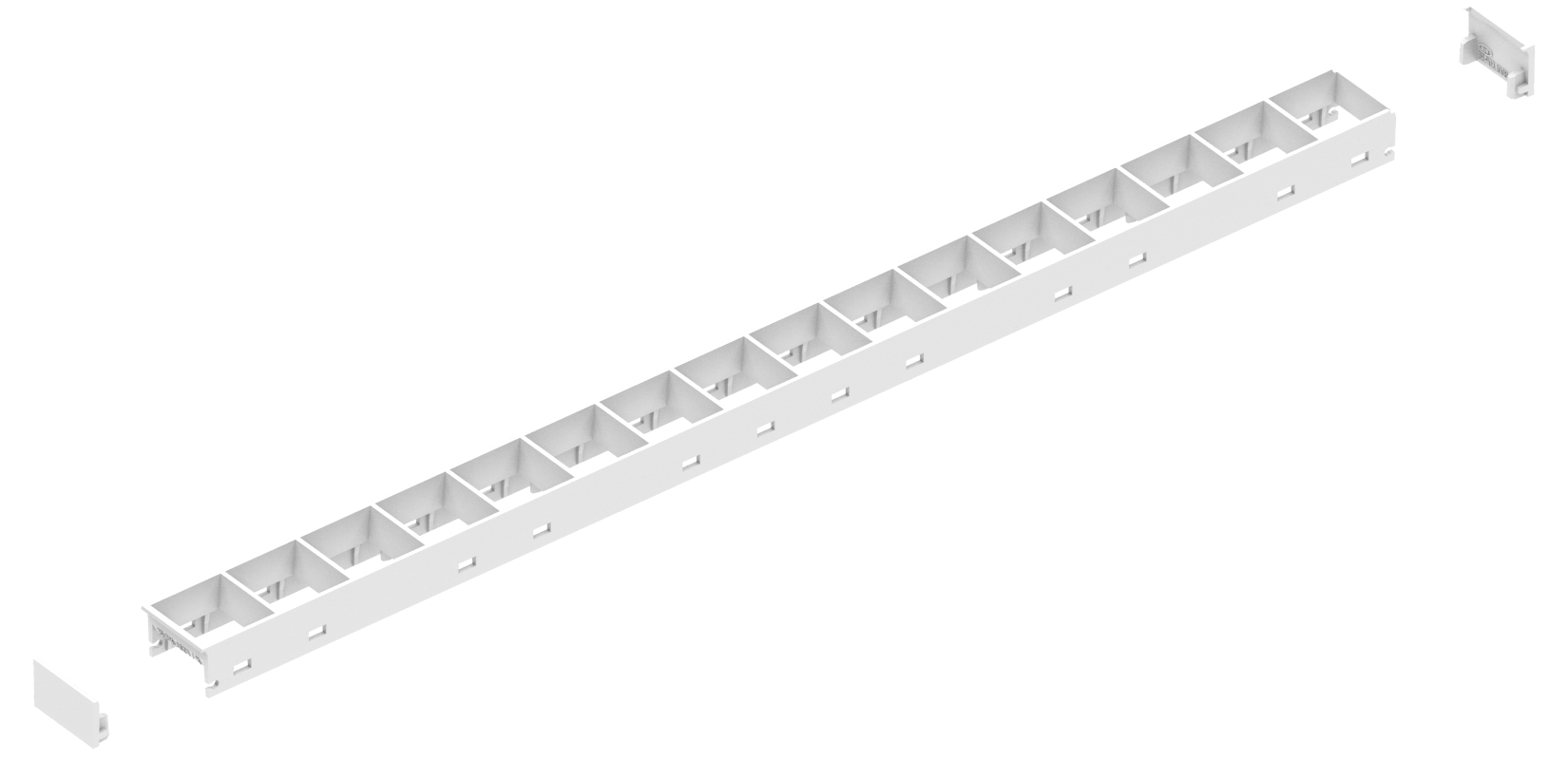

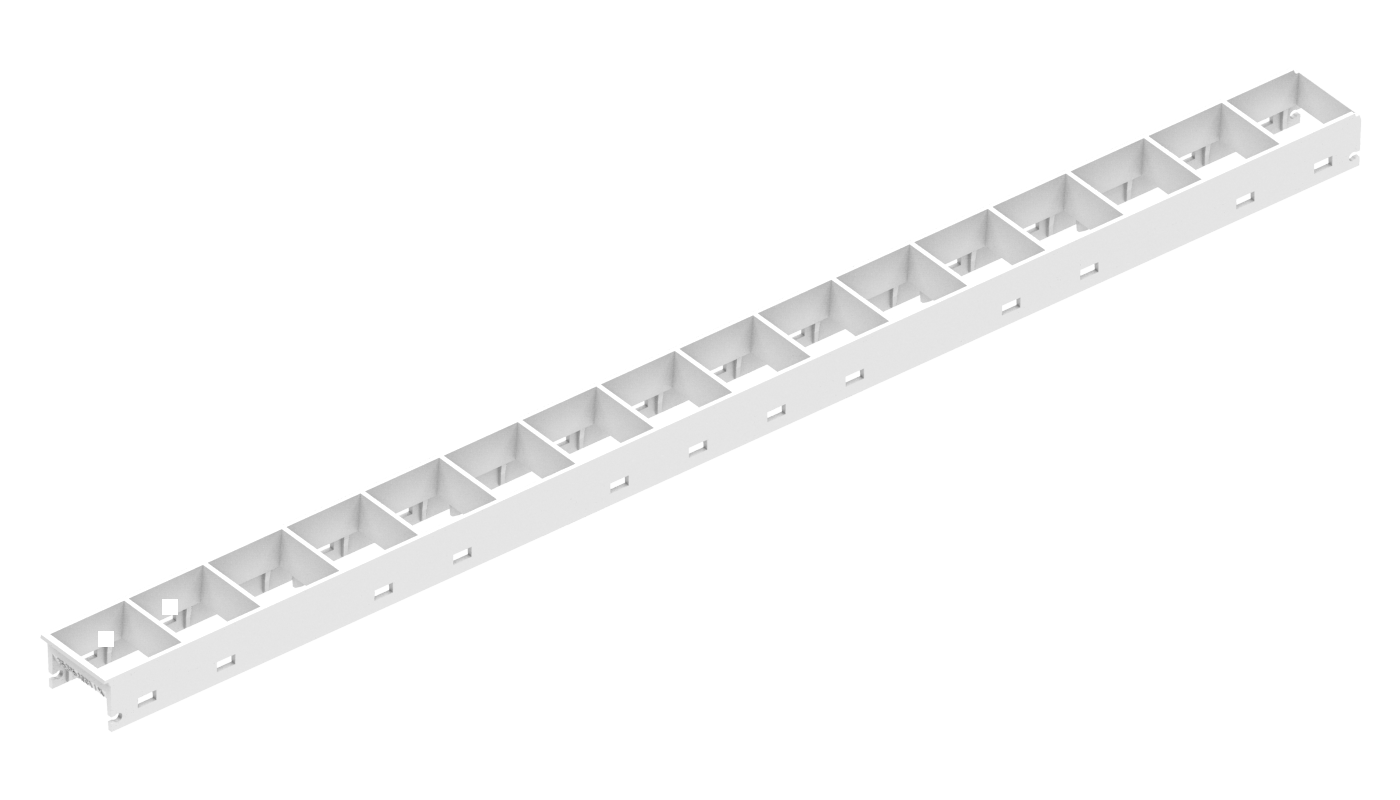

OptiLine Louvre Mini 18 Black & White 1 ft optics grid
货号:
35.316.A001-0
EAN:
4049853
-
max. 110°C
产品信息 "OptiLine Louvre Mini 18 Black & White 1 ft optics grid"
Louvre 1 ft

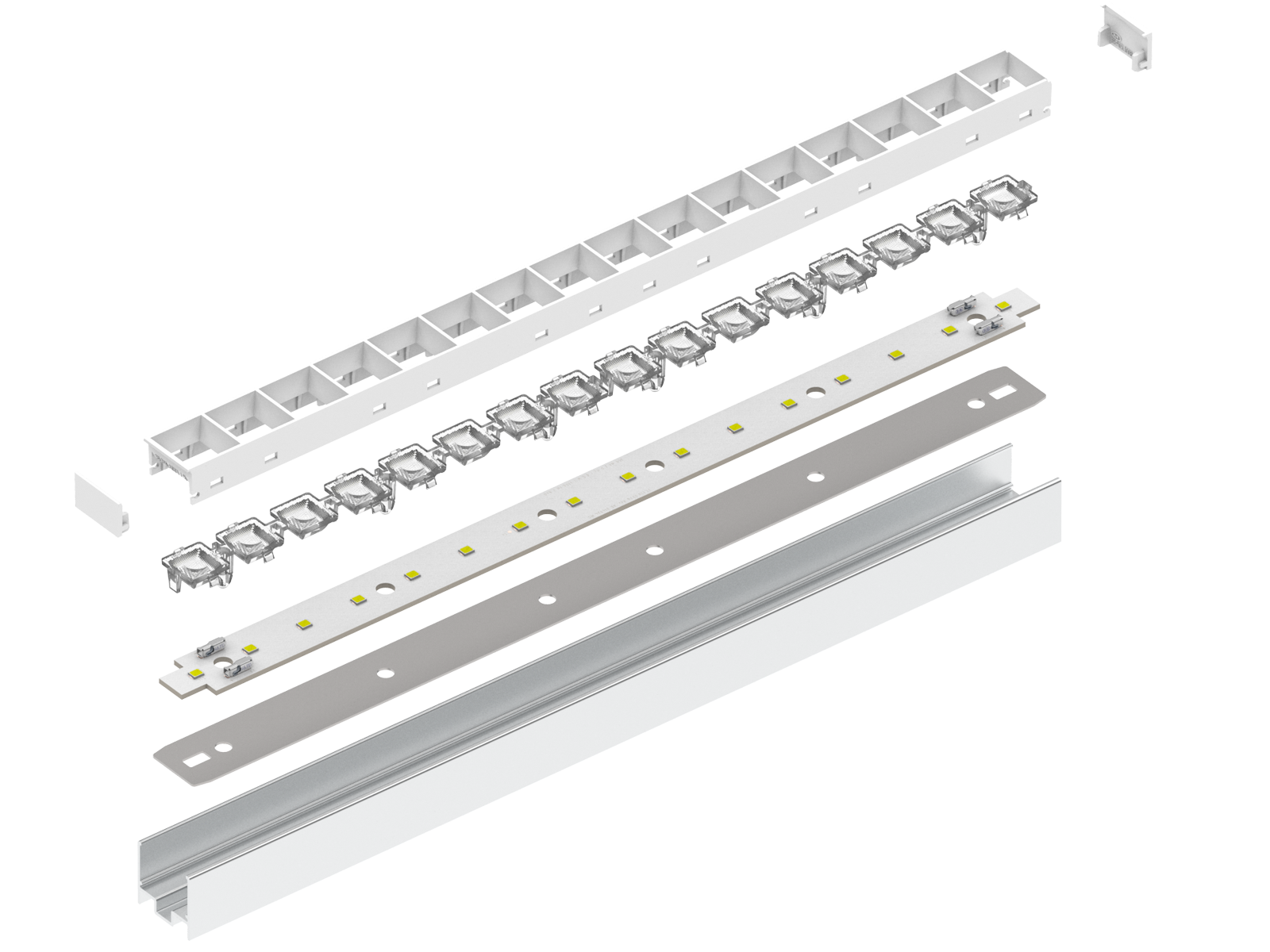

• For use with pitch dependent linear Lens array
• 35.308.A001 0 Narrow

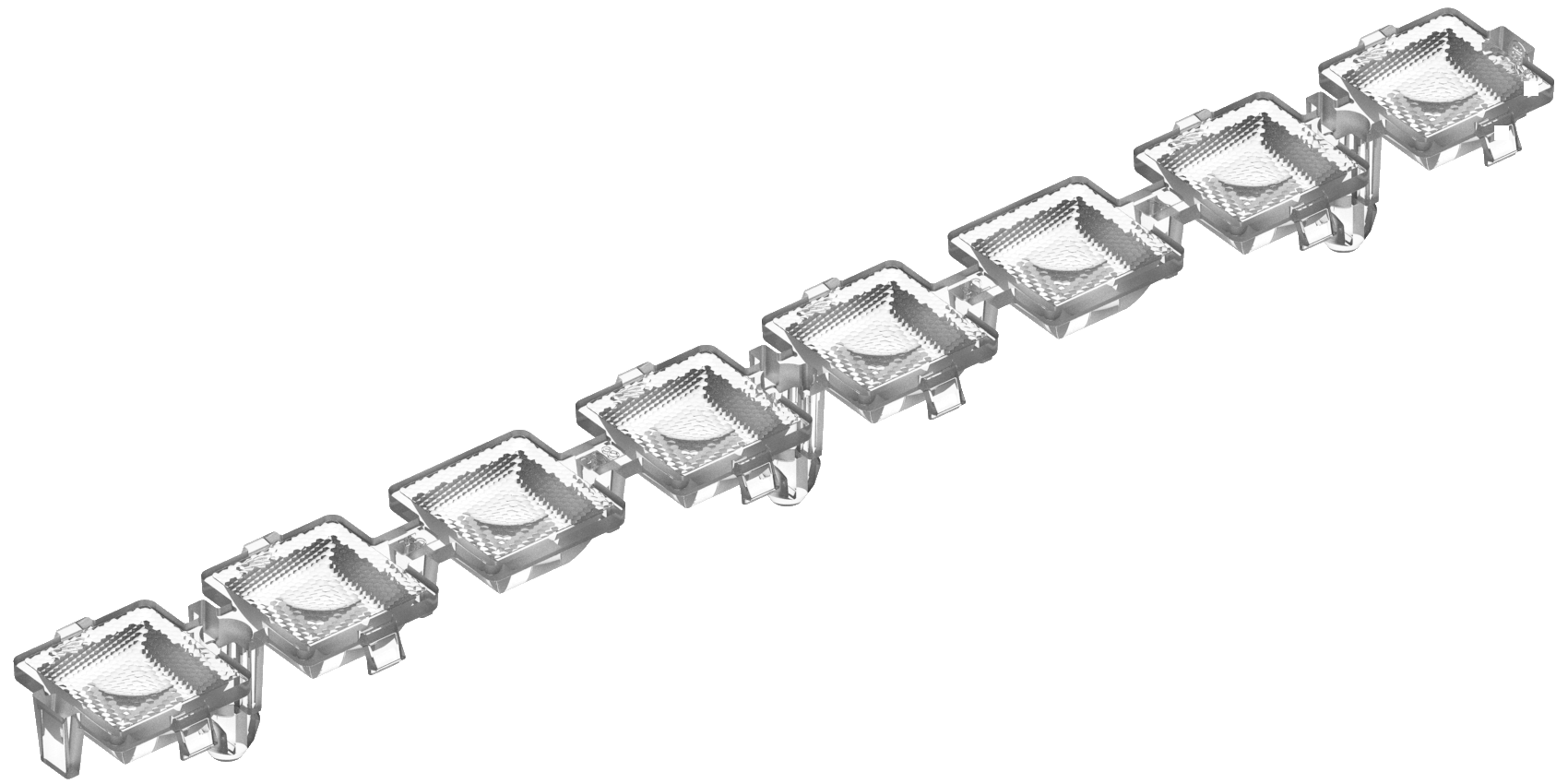

• 35.308.A002 0 Wide
• Optics and louvre are only available separately
Technical details
• Centering and positioning pins for aligning the louvre
• Snap-in hooks for fixing louvre into the optics
• Seamless integration into the luminaire housing
| Application areas: | Applications that require optimal light and minimal glare |
|---|---|
| Color: | white |

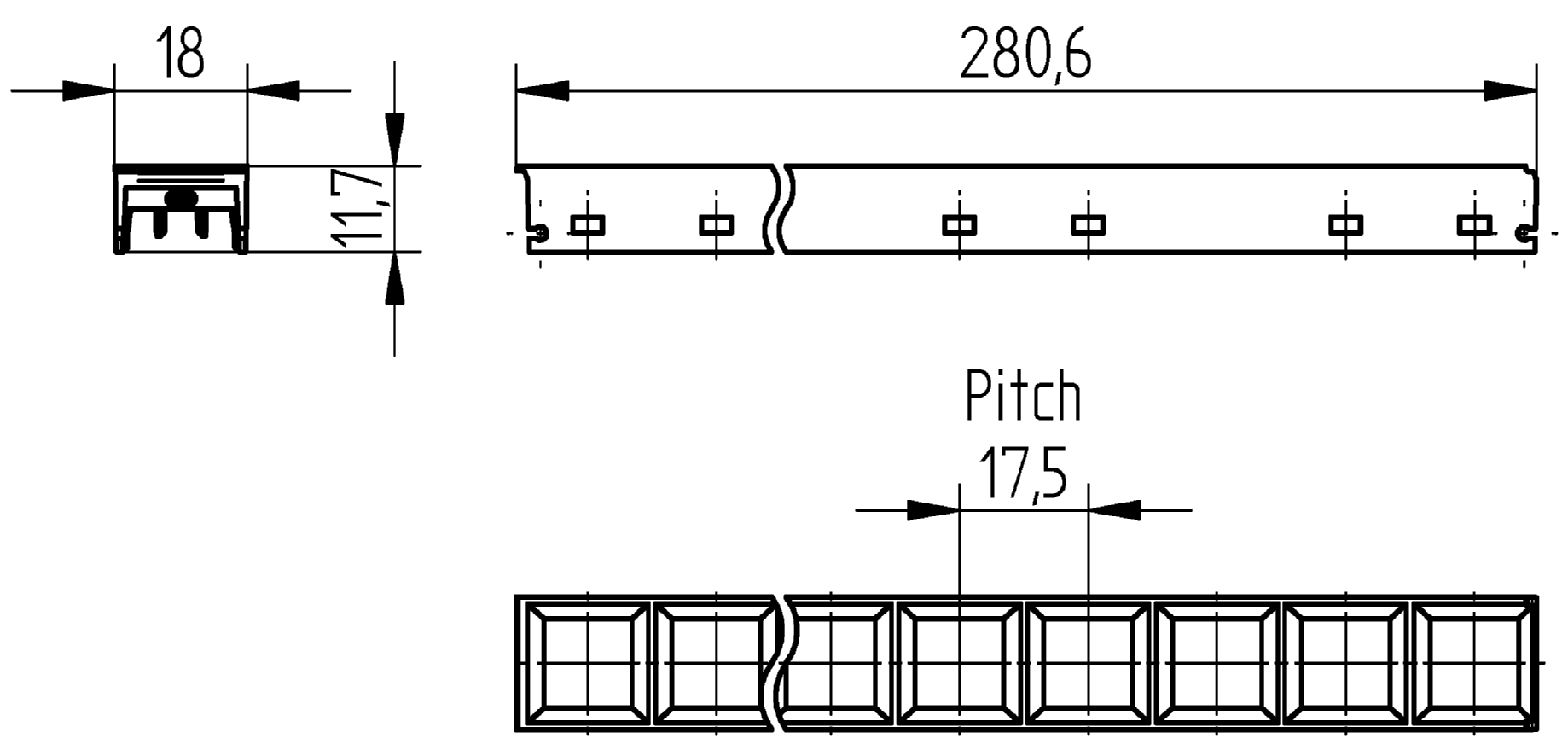

| Height: | 11,7 mm |
| Length: | 280,6 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110 °C |
| Packaging quantity: | 1 |
| Pitch distance: | 17.5 mm |
| Producttype: | OptiLine Louvre Mini 18 |
| Series: | OptiLine Louvre Mini 18 |
| Suitable for: | for LED dimensions 2835 |
| Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
| Weight: | 15,2 g |
| Width: | 18 mm |
| mounting method 1: | Snap into the optics |
Available CAD Downloads
