OptiSpot Lens Ø 35 mm Spot 新建
货号:
35.235.2001-0
EAN:
4049853
-
-
Spot
产品信息 "OptiSpot Lens Ø 35 mm
Spot"
OptiSpot Lens is optimized for use with connectors 47.360 with Ø 35 mm.
| Diameter: | 35 mm |
|---|---|
| Efficiency: | 83% |

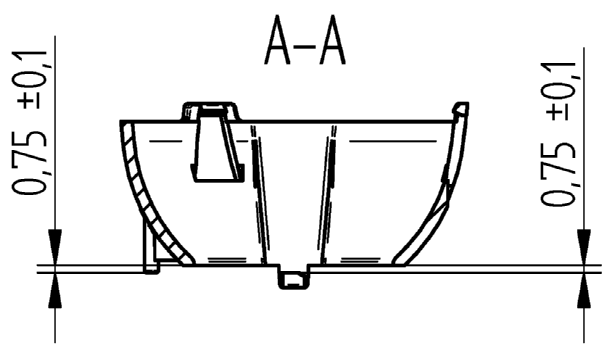

| Height: | 17,35 mm |
| Light Distribution: | Spot |

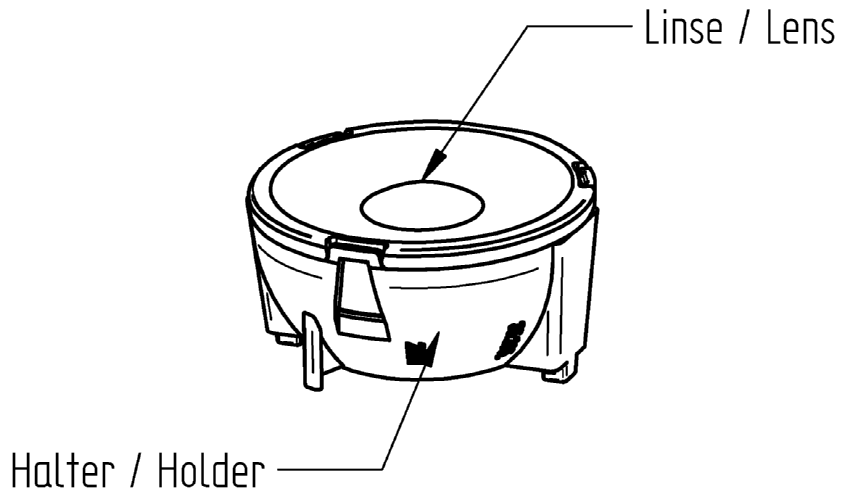

| Material: | Holder: PC / Lens: PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | 80°C |
| Packaging quantity: | 576 |
| Producttype: | OptiSpot Lens Ø 35 mm |
| Series: | Lenses Ø 35 mm for Spotlight Connectors Ø 35 mm |
| Suitable for: | Recommended COB Type: Luminus CHM-6 |
| Weight: | 9,6 g |
| angle of radiation: | 20° |
| mounting method 1: | Bayonet fixing by Twist & Lock action |
| old article number: | 35.235.2001.80 |
