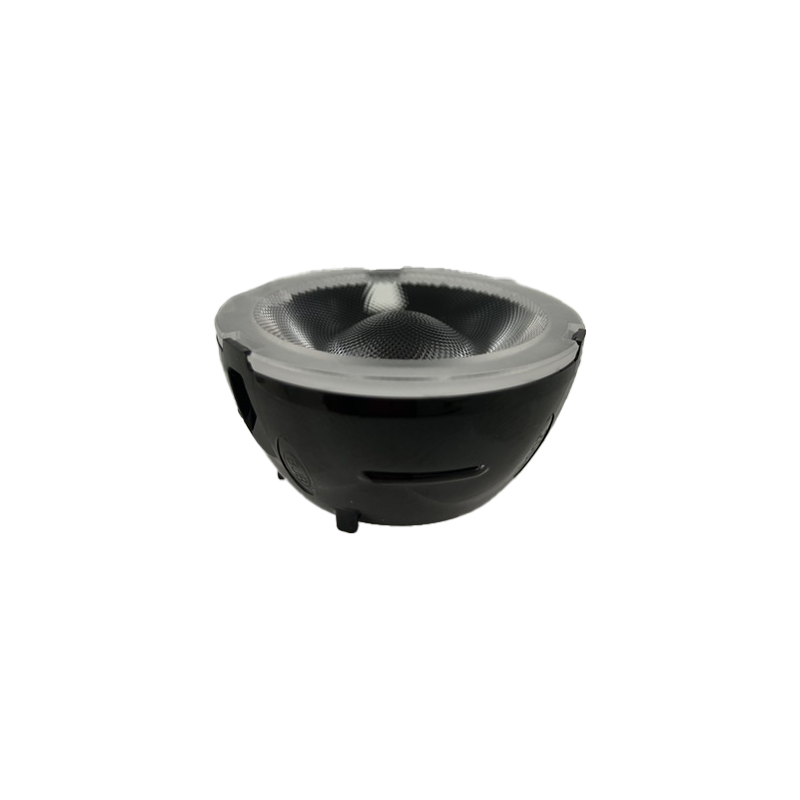

OptiSpot Lens Ø 45 mm - Medium
货号:
35.245.2002-0
EAN:
4049853
-
-
Medium
产品信息 "OptiSpot Lens Ø 45 mm - Medium"
OptiSpot Lens is optimized for use with connectors 47.360 with Ø 35 mm.

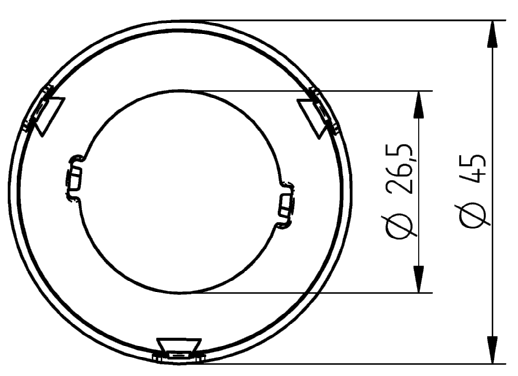

| Diameter: | 45 mm |
|---|---|
| Efficiency: | 82% |
| Height: | 20,90 mm |
| Light Distribution: | Medium |

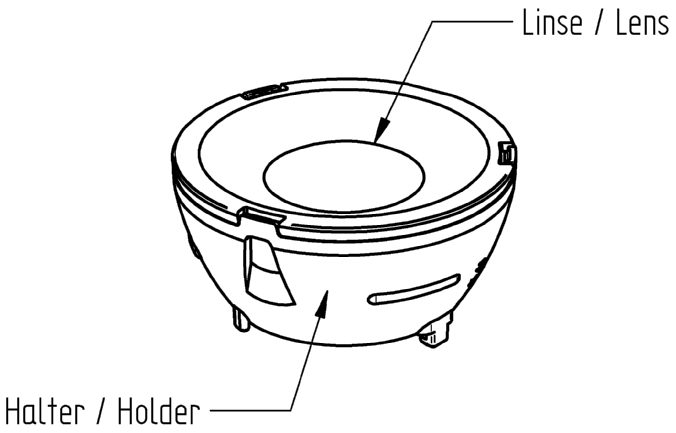

| Material: | Holder: PC / Lens: PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | 80°C |
| Packaging quantity: | 294 |
| Producttype: | OptiSpot Lens Ø 45 mm |
| Series: | Lenses Ø 45 mm for Spotlight Connectors Ø 35 mm |
| Suitable for: | Recommended COB Type: Citizen CLU02J |
| Weight: | 19,1 g |
| angle of radiation: | 26° |
| mounting method 1: | Bayonet fixing by Twist & Lock action |
| old article number: | 35.245.2002.80 |
可用下载
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|
-
-
