OptiSquare 4x4 - Medium
货号:
35.116.1007-0
EAN:
4049853
产品信息 "OptiSquare 4x4 - Medium"
Typical application:
• Car parks and parking area lighting
• Perimeter of car parks and parking areas
• Industrial lighting such as high-bay warehouses, packaging and shipping halls, production halls
• Car parks and parking area lighting
• Perimeter of car parks and parking areas
• Industrial lighting such as high-bay warehouses, packaging and shipping halls, production halls

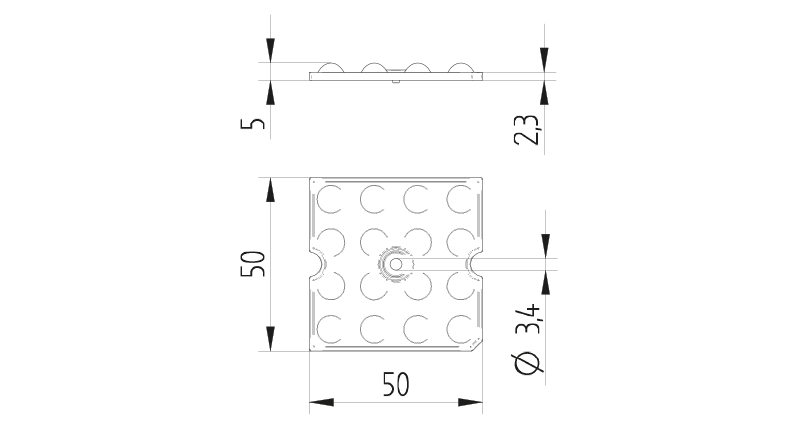

| Ausführung: | according to Zhaga Book 15 |
|---|---|
| Color: | clear |
| Height: | 5.0 mm |
| Length: | 50 mm |

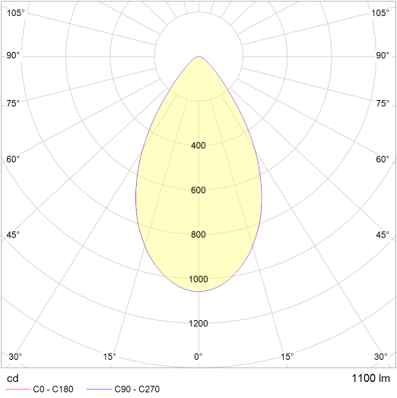

| Light Distribution: | Medium |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40 °C up to + 80 °C |
| Packaging quantity: | 840 |
| Pitch distance: | 12.5 mm |
| Producttype: | 4x4 Optics for Street, Area and Highbay Lighting |
| Series: | 4x4 Optics for Street, Area and Highbay Lighting |
| Suitable for: | Suitable for LED chips 3030, 2835 and LED modules with4x4 Pitch according to Zhaga Book 15 |
| Surface: | Lens surface: highly polished |
| Weight: | 6,2 g |
| Width: | 50 mm |
| mounting method 1: | Screw fixing: (0.5 Nm) for screws M3 |
| old article number: | 35.116.1007.85 |
