Socket base system GR6d-3 700mA 0.4 - 1.0mm Universal
货号:
28.701.1002-0
EAN:
4049853
-
0,5 - 0,75 mm²
-
0,4 - 1,0 mm
-
-
-
产品信息 "Socket base system GR6d-3 700mA 0.4 - 1.0mm Universal"
Also suitable for automatic wiring
Spring connection "Click-Fit"
VDE-REG.-No. E612
Spring connection "Click-Fit"
VDE-REG.-No. E612
| Ausführung: | Suitable for use in 3 phase busbar |
|---|---|
| Base: | GR6d-5 |
| Color: | white |
| Luminaire wall thickness: | 0.4 - 1.0 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 100 |
| Producttype: | Lampholders for linear LED Modules (LFS) |
| Rating: | 700 mA DC |
| Series: | Lampholders for Linear LED Modules |
| UL?: | yes |
| Weight: | 10 g |
| mounting method 1: | Snap fixing |
| old article number: | 28.701.1002.51 |

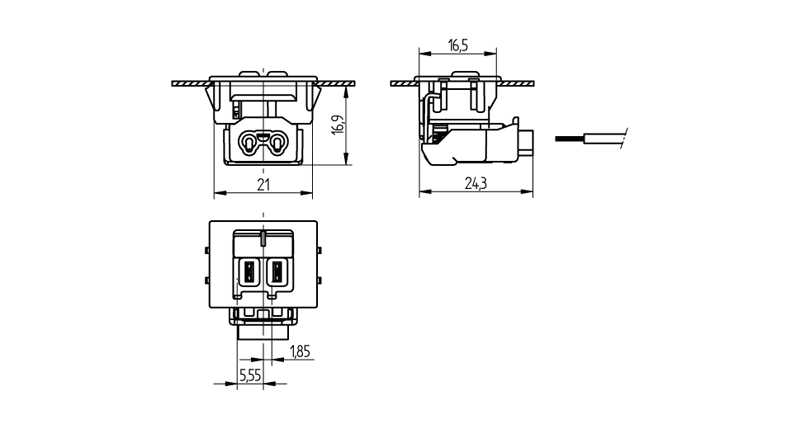

Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 28.701.1002-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 28.701.1002-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 | ||
| 28.701.1002-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity4667472 |
-
0,5 - 0,75 mm²
-
0,4 - 1,0 mm
-
-
-
Accessories
