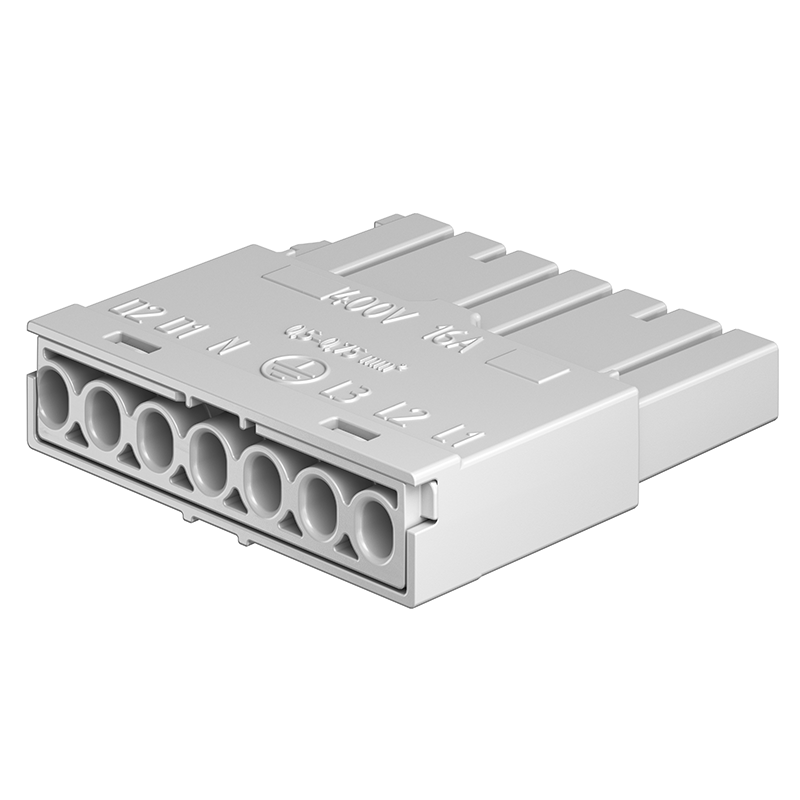

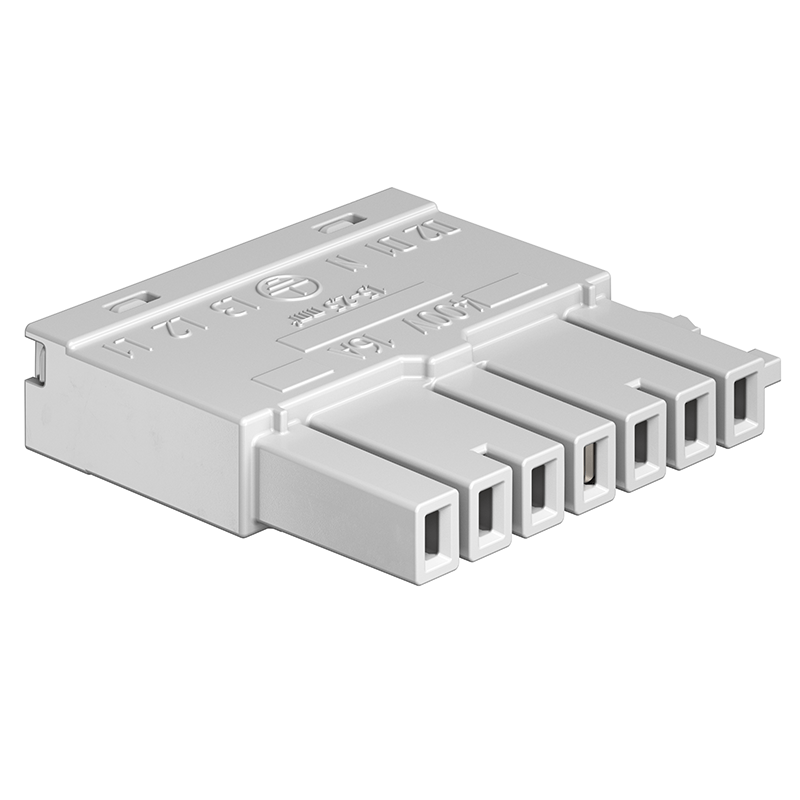

Supply Plug, A, small (0,5-0,75 - L1/L2/L3/PE/N/DA/DA) bottom row
货号:
47.514.3107-1
产品信息 "Supply Plug, A, small (0,5-0,75 - L1/L2/L3/PE/N/DA/DA) bottom row"
Small Supply Plug A for Connector System 7 and 14 pole for trunking systems
| Certification Mark: | VDE MARKS APPROVAL for Connector (COC) 47.514 |
|---|---|
| Certification Status: | active |
| Conductor cross-section: | 0.5 - 0.75 mm² |
| Connector: | push wire contact |
| Contact opening: | not releasable |
| Earth contact : | Earth Sign central positioned |
| IP-Protection type: | IP 20 |
| Material: | Housing: PA 6.6 |
| Max. operating current : | 16 A |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 7 |
| Operating temperature: | Surroundings temperature from -40°C up to +125°C |
| Other: | Mating - / Unamting cycles: 10 |
| Packaging quantity: | 200 |
| Producttype: | Connector System for trunking systems |
| Rated voltage: | 500 V |
| Resistance: | Glow wire resistance: 850°C |
| Seal: | no |
| Series: | Connector System |
| Weight: | 15,7 g |
| Wire length: | 8 - 10 mm |
| Wires: | Solid wires |
| mounting method: | Click-in fastening |
| old article number: | 47.514.3107.81 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.514.3107-1 | VDE_Zeichengenehmigung-VDE_Marks_Approval6276671 |
