Universal LED Drum Light 新建
货号:
77.125.2002-0
EAN:
4049853
产品信息 "Universal LED Drum Light"

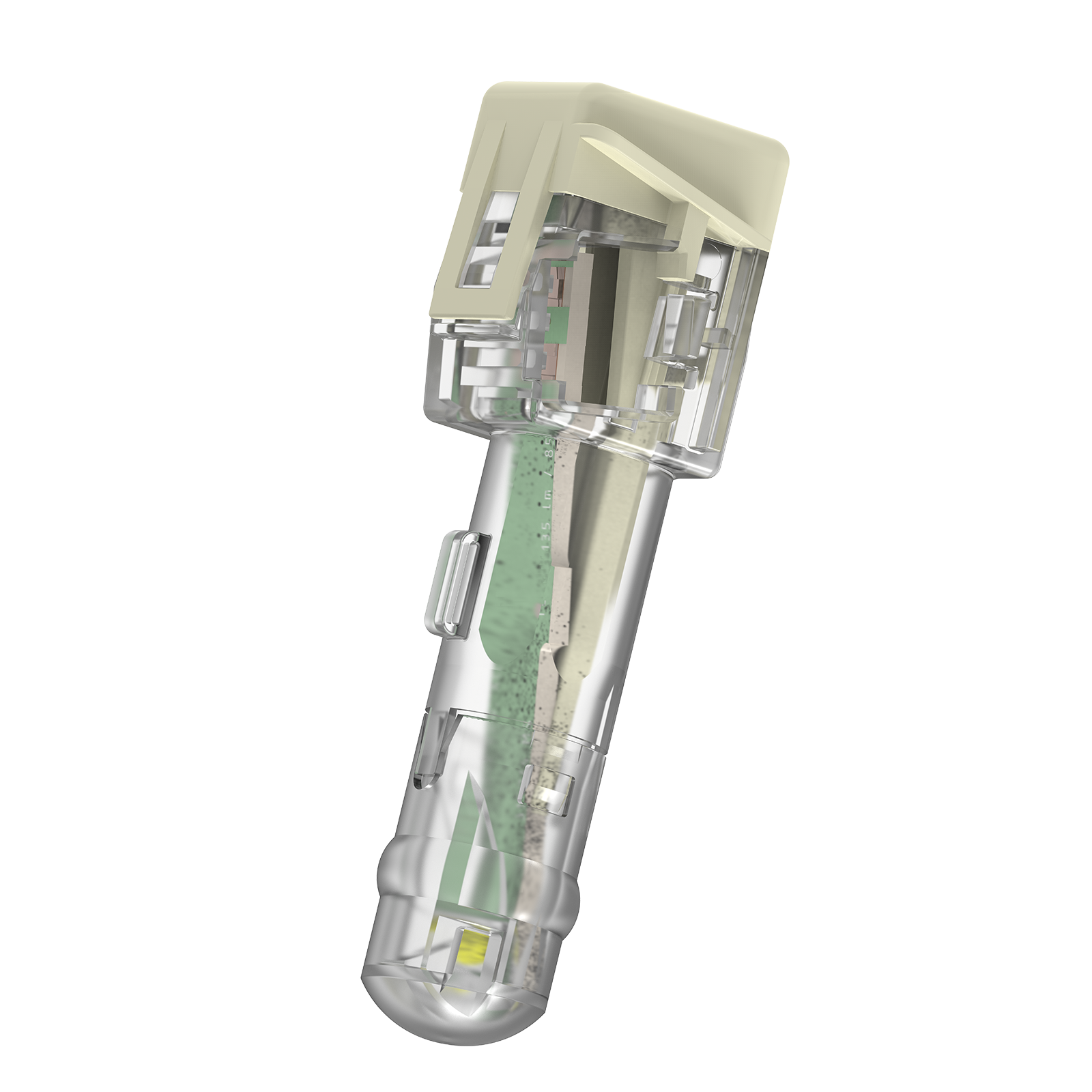

Universal LED Drum Light for use as washing machine and dryer light
| Application areas: | Home |
|---|---|
| Ausführung: | dimmable |
| Colour temperature: | Max. Temp. @ Tc-Punkt Leiterplatte 110°C |
| Diameter: | 12.3 mm |
| Durability: | Average life time (L70 / B50)= 6000 h (according to BJB test requirements) |
| Energy efficiency class (A-G) : | E |
| Height: | 22,5 mm |
| LED?: | yes |
| Lamp: | LED |
| Length: | 62,3 mm |
| Luminous flux Ta25° C If typical: | 126 lm |
| Material: | Housing PC - Cover PA - LED cap PA |
| Max. Temperature at Tc point: | 110°C |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 350 mA |
| Operating mode: | Constant current |
| Operating voltage: | 2.8 V |
| Other: | dimmable universal LED Luminaire for use as washing machine and dryer light |
| Output: | 1.0 W |
| Packaging quantity: | 1 |
| Producttype: | LED Luminaire for dishwasher, washing machine and dryer |
| Protection class: | SK III |
| Series: | WET |
| Suitable for: | Washing machines - Dryer |
| Width: | 18,5 mm |
| mounting method: | Board connection: le for 3-pin Rast 2.5 plugECO Tronic 7234-003-001-960-000-00-G |
| number of LEDs per module: | 1 |
| old article number: | 77.125.2002.00 |
Available CAD Downloads
