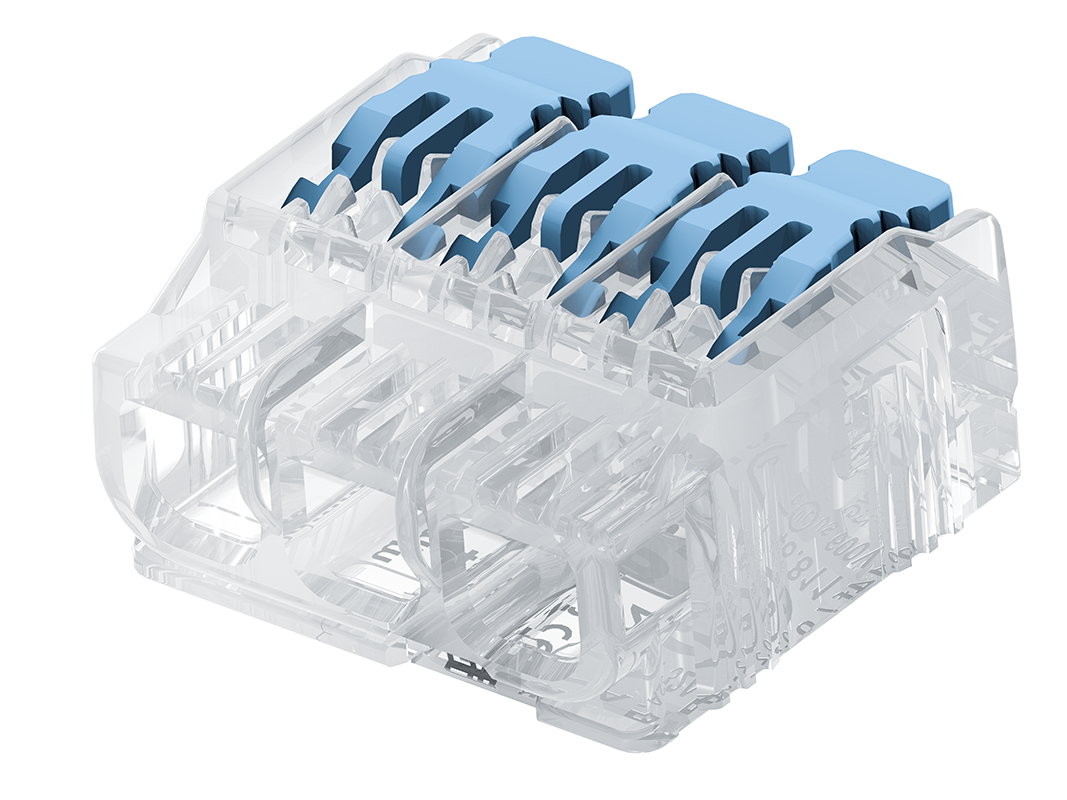

Universal wire connector 2. Gen., 3 numbers of connection, 1 potential, Contact opening function

货号: 46.811.1002-0

EAN: 4049853

产品信息 "Universal wire connector 2. Gen., 3 numbers of connection, 1 potential, Contact opening function"

Versatile use in various applications in lighting as well as in building installations
Combination of different wire cross-section in one terminal possible
High pull-off forces
Direct insertion of rigid wires
Easy and tool-free connection and disconnection of wires
Release lever for flexible wires
Adjustment of the optimal stripping length on the underside
The transparent housing allows for easy checking the correct wire positioning
Test ports on front and backside

Product standards:

Application areas:	Universal wire connector in electricity area. Versatile use in various applications in lighting as well as in building installations.
Color:	transparent - blue
Contact opening:	0.2 - 4 mm² / AWG 24 - 12

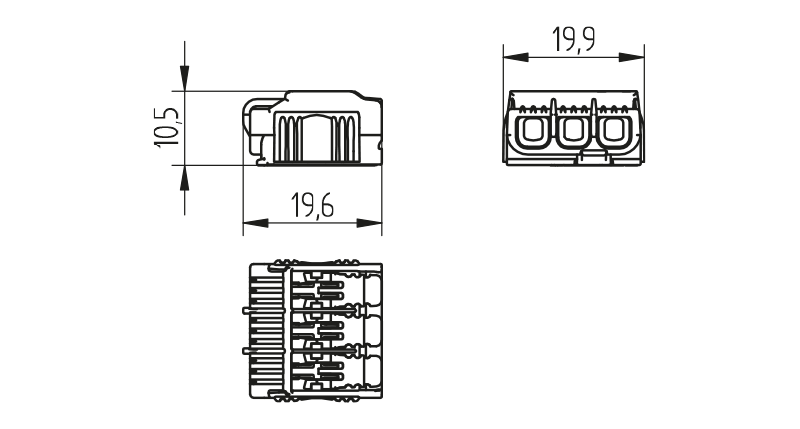

Height:	10,5 mm
IP-Protection type:	IP20
Length:	19,6 mm
Lettering:	ohne / without
Material:	Housing: PC, transparent - Cover: PK, blue - Contacts: Copper, CrNi
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating current:	32 A (IEC) / 20 A (UL)
Operating temperature:	-5 to +45°C
Operating voltage:	450 V (IEC) / 600 V (UL)
Other:	Humidity 5 - 95%
Packaging quantity:	2500
Producttype:	Univeral wire connectors
Series:	Universal wire connectors
T-marking:	T85 (IEC) / T105 (UL)
Weight:	3,45 g
Width:	19,9 mm
Wire length:	Stripping length 11 - 12 mm
Wires:	solid, stranded and flexible
old article number:	46.811.1002.85

可用下载

Available CAD Downloads

证书

货物编号	状态：	描述：	文档
46.811.1002-0			Genehmigung_liegt_vor-Approval_at_hand6933209
46.811.1002-0			cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)6700405
